Product Description
PC Tail shielded contacts provide a cost effective packaging solution for limited space applications where connectors are attached to printed circuit boards. High reliability is assured with factory pre-assembled contacts and standardized termination to the board. PC Tail contacts are available for MIL-DTL-38999 Series II.
For improved performance we recommend Milnec compatible MIL-DTL-38999 Series II style connectors.
Specifications
- SAE-AS39029: Mating interface meets or exceeds the requirements and specifications of M39029/58-360, except as indicated
- Contact Material: Suitable copper alloy
- Mating Interface Finish: Gold plate per IAW ASTM B488-01, Type II, Code C, Class 1.25 (.000050 Min) over nickel IAW AMS QQ-N-290, Class 1, .000050-.000100 thick
Data Sheet
View other D38999 Series II PCB Contact Sizes Build 38999 Connector with PCB Contacts

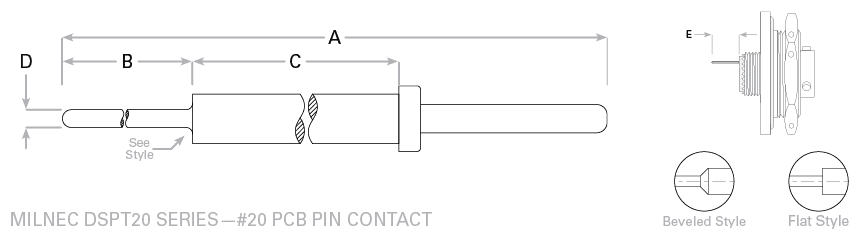

MIL-DTL-38999 Series II – #20 PCB Pin Contacts
| Part Number | Popular | A | B | C | D | Shoulder Style | E Tail Stickout‡ DS00, DS02, DS04, DS07 Shells | E Tail Stickout‡ DS03 Shells |
|---|---|---|---|---|---|---|---|---|
| DSPT20-101 | .960 (24.38) | .406 (10.31) | .257 (6.53) | .019 (.48) | Beveled | .124 (3.15) – .154 (3.91) | .229 (5.82) – .259 (6.58) | |
| DSPT20-102 | ★ | 1.035 (26.29) | .293 (7.44) | .445 (11.30) | .019 (.48) | Beveled | .199 (5.06) – .229 (5.82) | .304 (7.72) – .334 (8.48) |
| DSPT20-103 | 1.077 (27.36) | .335 (8.51) | .445 (11.30) | .019 (.48) | Beveled | .241 (6.12) – .271 (6.88) | .346 (8.79) – .376 (9.55) | |
| DSPT20-104 | 1.112 (28.25) | .370 (9.40) | .445 (11.30) | .019 (.48) | Beveled | .276 (7.01) – .306 (7.77) | .381 (9.68) – .411 (10.44) | |
| DSPT20-105 | 1.132 (28.75) | .390 (9.91) | .445 (11.30) | .019 (.48) | Beveled | .296 (7.52) – .326 (8.28) | .401 (10.19) – .431 (10.95) | |
| DSPT20-106 | 1.164 (29.57) | .502 (12.75) | .365 (9.27) | .019 (.48) | Flat | .328 (8.33) – .358 (9.09) | .433 (11.00) – .463 (11.76) | |
| DSPT20-107 | ★ | 1.170 (29.72) | .428 (10.87) | .445 (11.30) | .019 (.48) | Beveled | .334 (8.48) – .364 (9.25) | .439 (11.15) – .469 (11.91) |
| DSPT20-108 | ★ | 1.194 (30.33) | .437 (11.10) | .460 (11.68) | .019 (.48) | Beveled | .358 (9.09) – .388 (9.86) | .463 (11.76) – .493 (12.52) |
| DSPT20-109 | 1.222 (31.04) | .480 (12.19) | .445 (11.30) | .019 (.48) | Beveled | .386 (9.80) – .416 (10.57) | .491 (12.47) – .521 (13.23) | |
| DSPT20-110 | 1.377 (34.98) | .635 (16.13) | .445 (11.30) | .019 (.48) | Beveled | .541 (13.74) – .571 (14.50) | .646 (16.41) – .676 (17.17) | |
| DSPT20-111 | 1.447 (36.75) | .705 (17.91) | .445 (11.30) | .019 (.48) | Beveled | .611 (15.52) – .641 (16.28) | .716 (18.19) – .746 (18.95) | |
| DSPT20-112 | 1.481 (37.62) | .927 (23.55) | .257 (6.53) | .019 (.48) | Beveled | .645 (16.38) – .675 (17.15) | .750 (19.05) – .780 (19.81) |
★ Popular: Most Popular Call-Outs, Best In-Stock Solutions
‡ Extension Tolerances: ± 0.02 (0.5mm)
Note: #22M and #22D contacts are interchangeable. Tail stickout dimensions are for Milnec connectors. When used in compatible connectors from other brands, dimensions can vary as much as ±0.10 inches due to manufacturing differences.
How To Order Your Milnec MIL-DTL-38999 Series II Type Connector with PCB Contacts
To quickly order your 38999 connector prefilled with your preferred PC tail contacts, take your connector part number and replace the P (pin) or S (socket) with X (PC tail pin) or Y (PC tail socket) and simply add the Dash Number of the preferred contact tail length. For example to order a DS07W10-35PN with DSPT22-106 PC tail contacts, order DS07W10-35XN-106.
